Timemore C5ESP manual coffee grinder

The year 2025 marks a new milestone for Timemore in coffee equipment innovation with the launch of a new grinder lineup. Among them, the Timemore C5 ESP stands out as the most anticipated model, offering exceptional versatility across various brewing methods. Not only is it an upgrade from the C3 ESP, but it also represents a significant leap forward in the C-series grinder lineup. Featuring a larger 42mm burr, ultra-fine adjustment of 0.015 mm per click, and a premium design, this grinder is built to satisfy even the most demanding espresso enthusiasts while remaining flexible for other brewing styles.

Compact Design with Durable Full-Metal Construction

With dimensions of just 159 × 53 × 163.5 mm and a 53 mm diameter, the Timemore C5 ESP maintains the compact form factor of the C Series, making it easy to hold and convenient for travel. The body is constructed from solid metal with a finely textured pattern that enhances both aesthetics and grip. The internal frame is also fully metal, improving alignment, minimizing wobble, and ensuring consistent grind quality.

The grinder features an “XL Funnel” design with a wider opening, allowing beans to be loaded easily while minimizing spillage. The grinding chamber has a capacity of up to 30g of coffee beans per use, making it suitable for all manual brewing methods.

Upgraded High-Precision Grind Adjustment

The Timemore C5 ESP offers 50 ultra-fine adjustment clicks (0.015 mm per click), providing a 260% wider adjustment range compared to the C3 ESP. This allows precise control over grind size, from fine espresso to coarse settings for pour-over or French press. The ultra-precise adjustment system is designed to meet the needs of espresso enthusiasts who demand maximum accuracy.

Additionally, the click adjustment knob is refined and durable, with clearer tactile and audible feedback, making grind size adjustments more intuitive and precise.

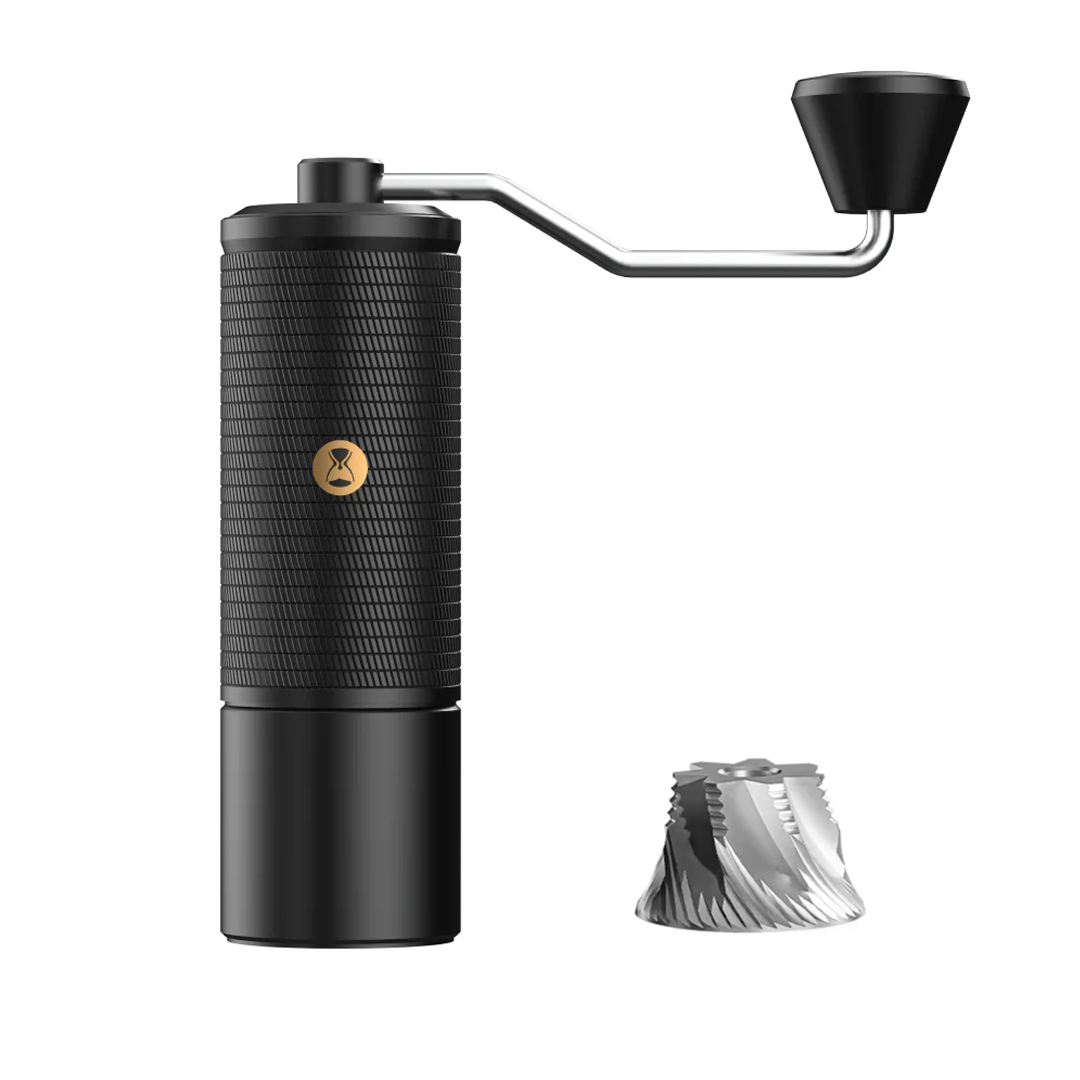

Latest and Most Advanced C-Series Burr

The Timemore C5 ESP upgrades from the 38mm burr of the C3 to a completely new 42mm burr set. The number of blades has increased from 6 to 7, resulting in smoother, faster grinding and significantly improved consistency. This leads to better clarity and enhanced flavor in the final cup.

What’s Included in the Timemore C5 ESP Manual Grinder Set

• Grinder body with grounds container
• Crank handle with a sturdy plastic knob
• User manual and warranty card
• Specialized cleaning brush
• Premium packaging box with protective foam insert

How to Adjust Grind Size on the Timemore C5 ESP

The grind adjustment mechanism uses a click-based system located at the bottom of the upper section of the grinder, allowing precise control and preventing misalignment during use.

Steps:
• Remove the grounds container, turn the grinder upside down, and rotate the adjustment knob clockwise toward the fine setting until it cannot turn further. This is the “zero click” position.
• Then gradually rotate the knob back toward the coarse direction. Each step produces a soft “click.” Count the clicks to achieve your desired grind size.

Recommended Grind Settings

• Espresso: 0.5 – 1.2 turns
• Vietnamese Phin | Moka Pot: 1.2 – 1.5 turns
• Pour Over: 1.5 – 2.0 turns
• French Press: 2.0 – 2.4 turns
